Yamaha

Yamaha 4 hp outboard engine

Name: Yamaha 4 hp outboard engine
Brand: Yamaha
Price: 1245.01 EUR
Availability: OutOfStock

€1.355,01

In stock

Key features

Reliable Yamaha 4 hp outboard motor
Quiet, fuel-efficient and ready to start immediately
Lightweight and easy to carry
Manual start with smooth tiller control
Built-in tank + option for external tank
Perfect for inflatable boats and tenders
Ideal for carefree use and getting on the water right away

Specialist in Zodiac
1–3 days delivery time or pickup
Free shipping NL from €50,-

Fully inspected before delivery – ready to launch
Real showroom in Aalsmeer

DESCRIPTION

Yamaha 4 hp outboard engine

Yamaha 4 PK buitenboordmotor met 4-takt technologie, compact en lichtgewicht ontwerp, voorzien van helmstokbediening en geïntegreerde brandstoftank, geschikt voor rubberboten en tenders.

Description

Yamaha 4 HP outboard motor - compact power for your inflatable boat

The Yamaha 4 HP outboard motor is the ideal choice for watersports enthusiasts looking for a reliable, quiet and lightweight engine for their inflatable boat or dinghy. Thanks to its compact design and low weight, this portable outboard motor is easy to transport and perfect for use on small boats, tenders and fishing boats.

Despite its compact size, the Yamaha 4 HP delivers surprisingly strong performance. The engine starts quickly, runs smoothly and is known for its low fuel consumption and high reliability. Whether you are taking a relaxed trip on a lake, using a dinghy with a sailing boat, or looking for a compact engine for your inflatable boat: with this Yamaha outboard motor you can head out on the water with confidence.

Thanks to Yamaha’s high-quality engineering, robust construction and smart details, this 4 HP motor is designed for years of use with minimal maintenance.

Features

Reliable Yamaha 4 hp outboard motor
Compact and lightweight design, easy to transport
Ideal for inflatable boats, tenders and small boats
Whisper-quiet operation and fuel-efficient consumption

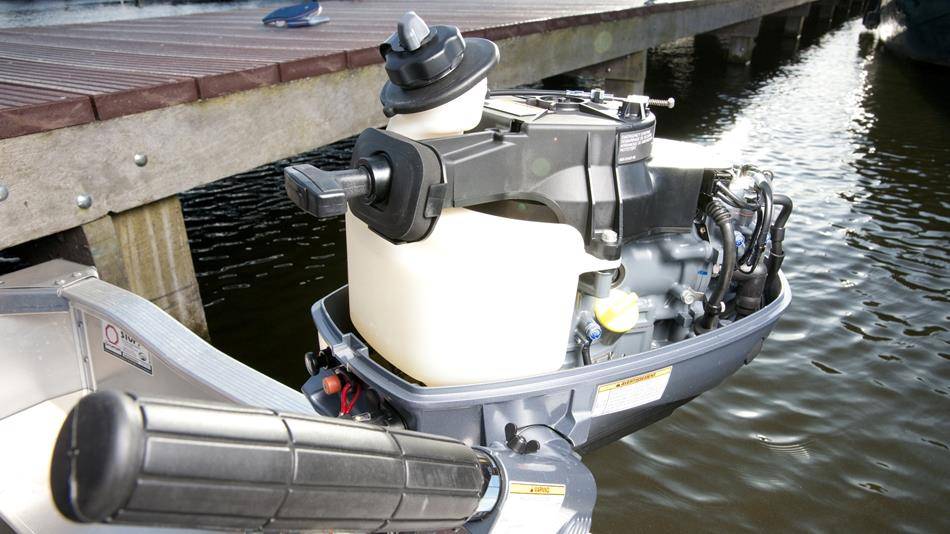

Built-in fuel tank for short trips
Option to connect an external fuel tank

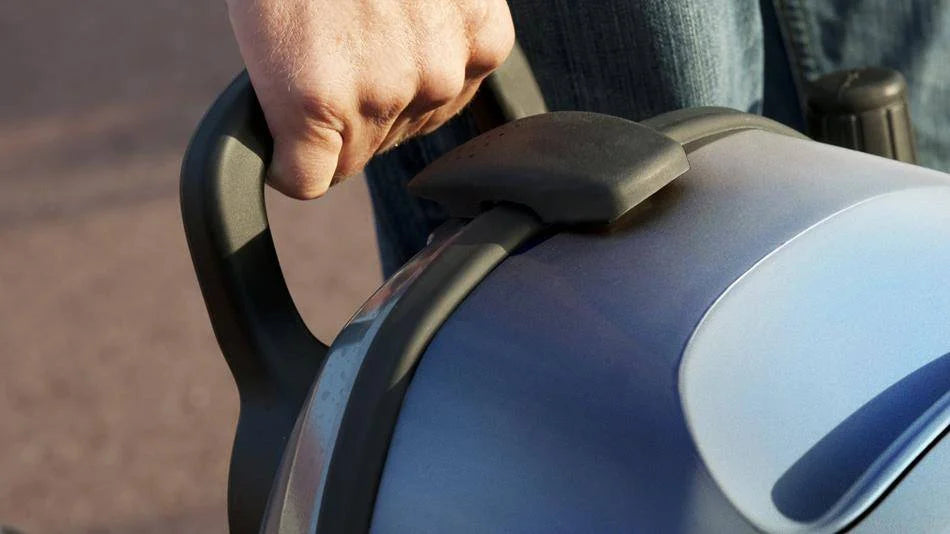

Ergonomic carry handle for easy transport

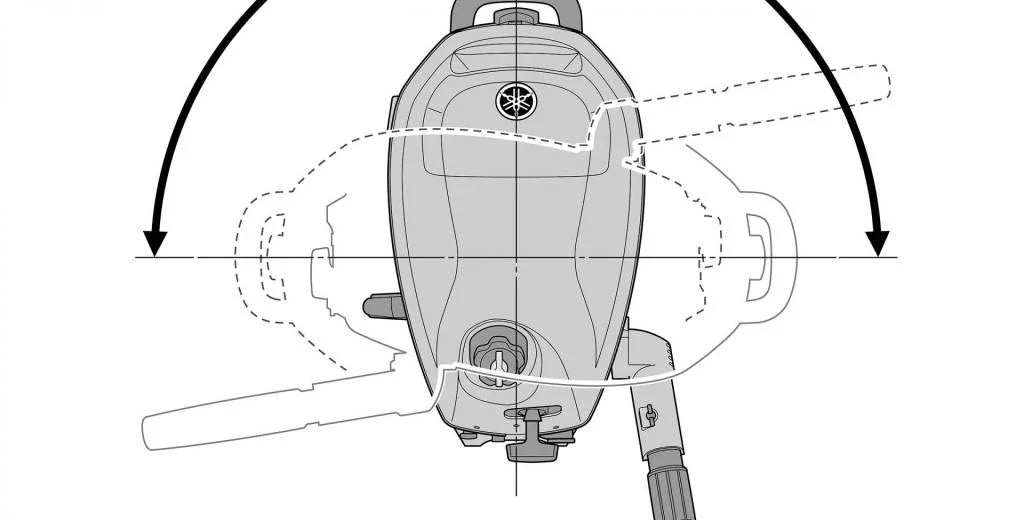

Large steering angle for optimal control and manoeuvrability
Optional charging coil for lighting or accessories

Use and benefits

The Yamaha 4 hp is designed for maximum simplicity and ease of use. Thanks to its compact size and ergonomic carry handle, you can easily take the engine in the car or to the slipway. This makes this outboard motor ideal for watersports enthusiasts who regularly use their inflatable boat at different locations.

The engine is highly suitable for inflatable boats, sailing-yacht tenders, small fishing boats, and recreational use on lakes, canals, and rivers.

For short trips, you can simply use the built-in fuel tank. If you’re heading out for longer, you can quickly connect an external tank to extend your range.

In addition, Yamaha’s smart ventilation system ensures the engine can be transported and stored safely without oil leakage.

The Yamaha 4 hp is an excellent engine for small inflatable boats and tenders. Thanks to its low weight, reliable performance, and easy operation, this outboard motor is a popular choice for watersports enthusiasts looking for a compact yet powerful engine.

Conclusion

The Yamaha 4 hp outboard motor combines reliability, portability and ease of use in one compact engine. Ideal for inflatable boats, tenders and small boats where a lightweight and efficient outboard motor is required.

At Zodiac Online Shop you’ll find the right outboard motor for your inflatable boat, with expert advice and fast delivery.

SPECIFICATIONS

Engine type

OHV, 1-cylinder

Displacement

139 cm³

Bore x stroke

62.0 × 46.0 mm

Compression ratio

8.9 : 1

Fuel system

1 carburetor

Lubrication system

Wet sump

Engine oil capacity

0.6 L

Ignition / advance

CDI

Alternator

6 A with optional regulator

Overall length

750 mm

Overall width

403 mm

Overall height

S: 1039 mm, L: 1166 mm

Engine transom height

S: 435 mm, L: 562 mm

Steering angle

90 degrees each direction

Dry weight

S: 27 kg, L: 28 kg

Maximum propeller shaft output

2.9 kW

Full throttle operating range

4000 – 5000 rpm

Idling speed

1450 – 1550 rpm

Shallow water drive

3 positions

Gear shift

F-N-R

Gear ratio

2.08 (27/13)

Gear oil capacity

0.100 L

	Current model Yamaha 4 hp outboard engine €1.245,01	Yamaha Yamaha 6 hp outboard engine €1.685,00
Motortype	OHV, 1-cylinder	OHV, single-cylinder
Cilinderinhoud	139 cm³	139 cm³
Boring x slag	62.0 × 46.0 mm	62.0 × 46.0 mm
Compressieverhouding	8.9 : 1	8.9 : 1
Brandstofsysteem	1 carburetor	1 carburetor
Smeersysteem	Wet sump	Wet sump
Motorolie-inhoud	0.6 L	0.6 L
Ontsteking / vervroeging	CDI	CDI
Dynamo	6 A with optional regulator	6 A with optional regulator
Totale lengte	750 mm	750 mm
Totale breedte	403 mm	403 mm
Totale hoogte	S: 1039 mm, L: 1166 mm	S: 1039 mm, L: 1166 mm
Spiegelhoogte	S: 435 mm, L: 562 mm	S: 435 mm, L: 562 mm
Stuurhoek	90 degrees each direction	90 degrees in each direction
Drooggewicht	S: 27 kg, L: 28 kg	S: 27 kg, L: 28 kg
Max. vermogen	2.9 kW	4.4 kW
Toerentalbereik	4000 – 5000 rpm	4500–5500 rpm
Stationair toerental	1450 – 1550 rpm	1450 – 1550 rpm
Shallow water drive	3 positions	3 positions
Schakelsysteem	F-N-R	F-N-R
Overbrengingsverhouding	2.08 (27/13)	2.08 (27/13)
Staartolie-inhoud	0.100 L	0.100 L

FAQs

Is a 4 hp outboard motor enough for an inflatable boat?

For small inflatable boats and tenders, a 4 hp outboard motor is often more than sufficient. This motor is ideal for relaxed cruising, short distances and use on lakes, canals and rivers. For larger inflatable boats, or when higher speed is required, a more powerful motor may be more suitable.

How much does a 4 hp Yamaha outboard engine weigh?

The Yamaha 4 hp is known as a lightweight, portable outboard engine. Thanks to its compact design, it is easy to lift, transport and mount on an inflatable boat or tender.

Can I connect an external fuel tank?

Yes, in addition to the built-in fuel tank, the Yamaha 4 hp can also be connected to an external fuel tank. This is useful if you want to make longer trips without having to refuel in between.

Is this outboard motor suitable for a sailboat tender?

Yes, the Yamaha 4 hp is widely used on dinghies for sailing yachts and tenders. Thanks to its low weight, reliability and simple operation, this outboard engine is ideal for transport between boat and shore.

Which inflatable boat is a good match for a 4 hp outboard motor?

A 4 hp outboard motor is very suitable for small to medium-sized inflatable boats of around 2.5 to 3.2 metres. This combination provides stable performance, easy transport and comfortable boating.
