Yamaha

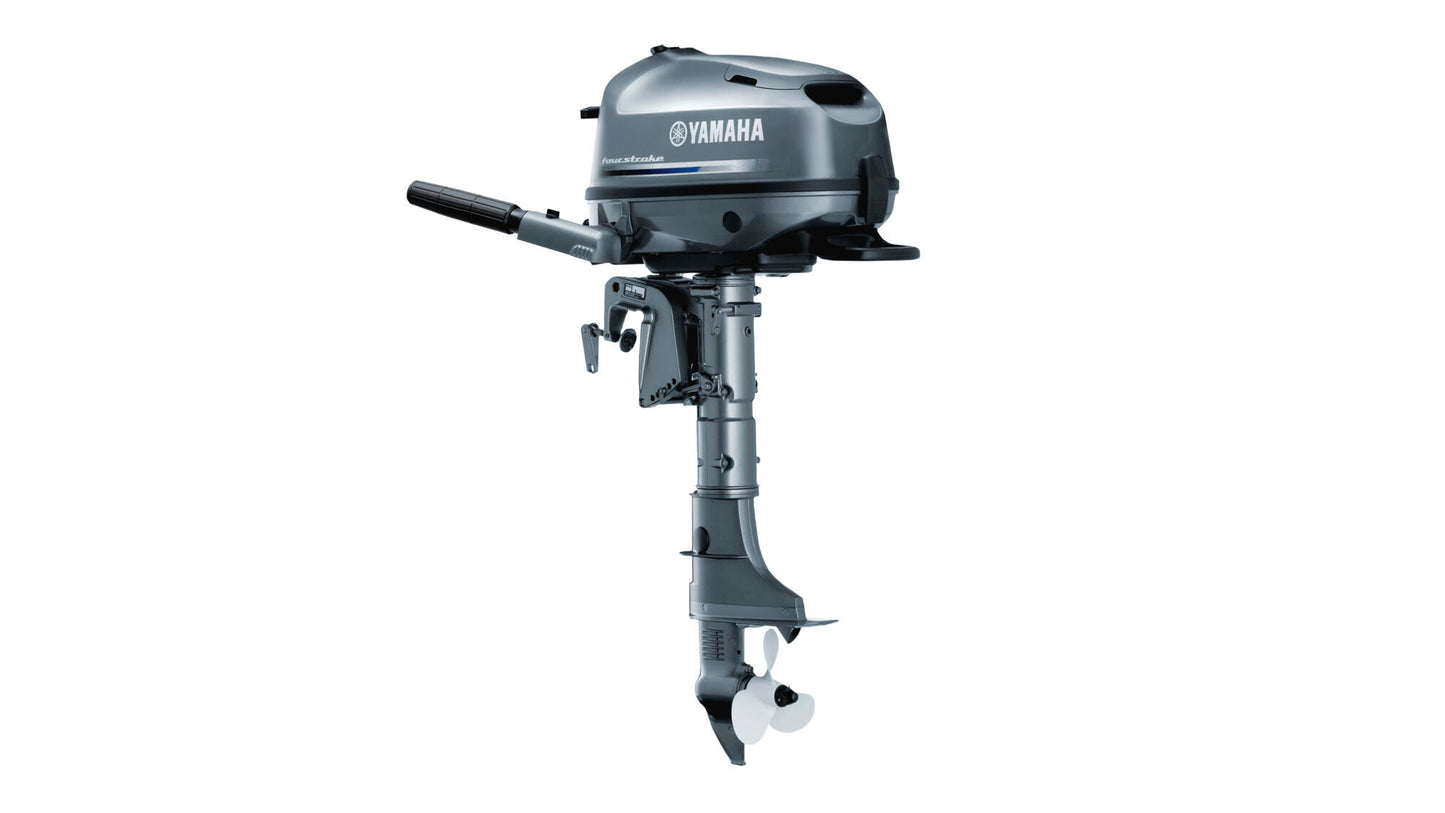

Yamaha 6 hp outboard engine
Yamaha 6 hp outboard engine
Regular price
€1.685,00
Offer price
€1.685,00
Regular price
Unit price
per
In stock
Specialist in Zodiac
- 1–3 days delivery time or pickup
- Free shipping NL from €50,-
- Fully inspected before delivery – ready to launch
- Real showroom in Aalsmeer
DESCRIPTION
Description
Yamaha 6 HP outboard motor – compact power with reliable performance
The Yamaha 6 HP outboard motor is a powerful, compact engine for watersports enthusiasts who want that little extra power without sacrificing ease of use. This engine is ideal for inflatable boats, tenders and small boats that need extra thrust.
Thanks to its smart design and high-quality finish, this engine is known for its smooth starting, quiet running and low vibration. This lets you cruise comfortably and in control, both on open water and in smaller boating areas.
The Yamaha 6 HP combines reliability with efficient fuel consumption and is designed for long-term use with minimal maintenance.
Features
Use and benefits
Conclusion
SPECIFICATIONS
Engine type
OHV, single-cylinder
Displacement
139 cm³
Bore x stroke
62.0 × 46.0 mm
Compression ratio
8.9 : 1
Fuel system
1 carburetor
Lubrication system
Wet sump
Engine oil capacity
0.6 L
Ignition / advance
CDI
Alternator
6 A with optional regulator
Overall length
750 mm
Overall width
403 mm
Overall height
S: 1039 mm, L: 1166 mm
Engine transom height
S: 435 mm, L: 562 mm
Steering angle
90 degrees in each direction
Dry weight
S: 27 kg, L: 28 kg
Maximum propeller shaft output
4.4 kW
Full throttle operating range
4500–5500 rpm
Idling speed
1450 – 1550 rpm
Shallow water drive
3 positions
Gear shift
F-N-R
Gear ratio
2.08 (27/13)
Gear oil capacity
0.100 L
| Motortype | OHV, single-cylinder | OHV, 1-cylinder | OHV, 1-cylinder |
| Cilinderinhoud | 139 cm³ | 72 cm³ | 139 cm³ |
| Boring x slag | 62.0 × 46.0 mm | 54.0 × 31.5 mm | 62.0 × 46.0 mm |
| Compressieverhouding | 8.9 : 1 | 8.8 : 1 | 8.9 : 1 |
| Brandstofsysteem | 1 carburetor | 1 carburettor | 1 carburetor |
| Smeersysteem | Wet sump | Splash lubrication | Wet sump |
| Motorolie-inhoud | 0.6 L | 0.25 L | 0.6 L |
| Ontsteking / vervroeging | CDI | CDI | CDI |
| Dynamo | 6 A with optional regulator | Not available | 6 A with optional regulator |
| Totale lengte | 750 mm | 625 mm | 750 mm |
| Totale breedte | 403 mm | 363 mm | 403 mm |
| Totale hoogte | S: 1039 mm, L: 1166 mm | S: 1028 mm, L: 1155 mm | S: 1039 mm, L: 1166 mm |
| Spiegelhoogte | S: 435 mm, L: 562 mm | S: 433 mm, L: 560 mm | S: 435 mm, L: 562 mm |
| Stuurhoek | 90 degrees in each direction | 360-degree full pivot | 90 degrees each direction |
| Drooggewicht | S: 27 kg, L: 28 kg | S: 17 kg, L: 18 kg | S: 27 kg, L: 28 kg |
| Max. vermogen | 4.4 kW | 1.8 kW | 2.9 kW |
| Toerentalbereik | 4500–5500 rpm | 5250 – 5750 r/min | 4000 – 5000 rpm |
| Stationair toerental | 1450 – 1550 rpm | 1800–2000 rpm | 1450 – 1550 rpm |
| Shallow water drive | 3 positions | Not available | 3 positions |
| Schakelsysteem | F-N-R | F-N | F-N-R |
| Overbrengingsverhouding | 2.08 (27/13) | 2.08 (27/13) | 2.08 (27/13) |
| Staartolie-inhoud | 0.100 L | 0.075 L | 0.100 L |
