Which valve or valve component do you need for your Zodiac inflatable boat or RIB?

On this page you will find complete overviews of all Zodiac valves, as well as the individual parts they are made up of. This makes it easy to determine which valve or part is suitable for your inflatable boat, RIB or tender.

PLEASE NOTE some part numbers in the diagrams may by now have been discontinued or may no longer be available.

Can’t figure it out or unsure which valve you need exactly?
Feel free to contact us; we will be happy to help you find the right part.

New valve system - semi-recessed - grey

This type of valve is used on current Zodiac and Bombard boats.

Ventieloverzicht van de nieuwe Zodiac ventielen - half verzonken
x Z67395 - Zodiac afsluitdop ventiel grijs - nieuwe type - met logoZ67395 - Zodiac afsluitdop ventiel grijs - nieuwe type - met logo

Z67395 - Sealing cap - half-flush grey valve - new valve type

x Zodiac Z67092 ventielbehuizing nieuw type Zodiac Z67092 ventielbehuizing nieuw type

Z67092 - valve housing - new type valve

x Z6852 pakking zodiac ventiel - zwartOverzicht ventiel opbouw - oudere Zodiac ventielen

Z6852 - valve gasket - black

x Zodiac Z67092 ventielbehuizing nieuw type Zodiac Z67092 ventielbehuizing nieuw type

Z67092 - valve housing - new type valve

x afsluitstuk-rubberboot-ventiel-zodiac-z67090-1afsluitstuk rubberboot ventiel zodiac-z67090

Z67090 - valve housing end cap

x Z67080 Zodiac Inzetventiel nieuwe type ventiel Z67080 Zodiac Inzetventiel nieuwe type ventiel

Z67080 - valve insert - new type valve

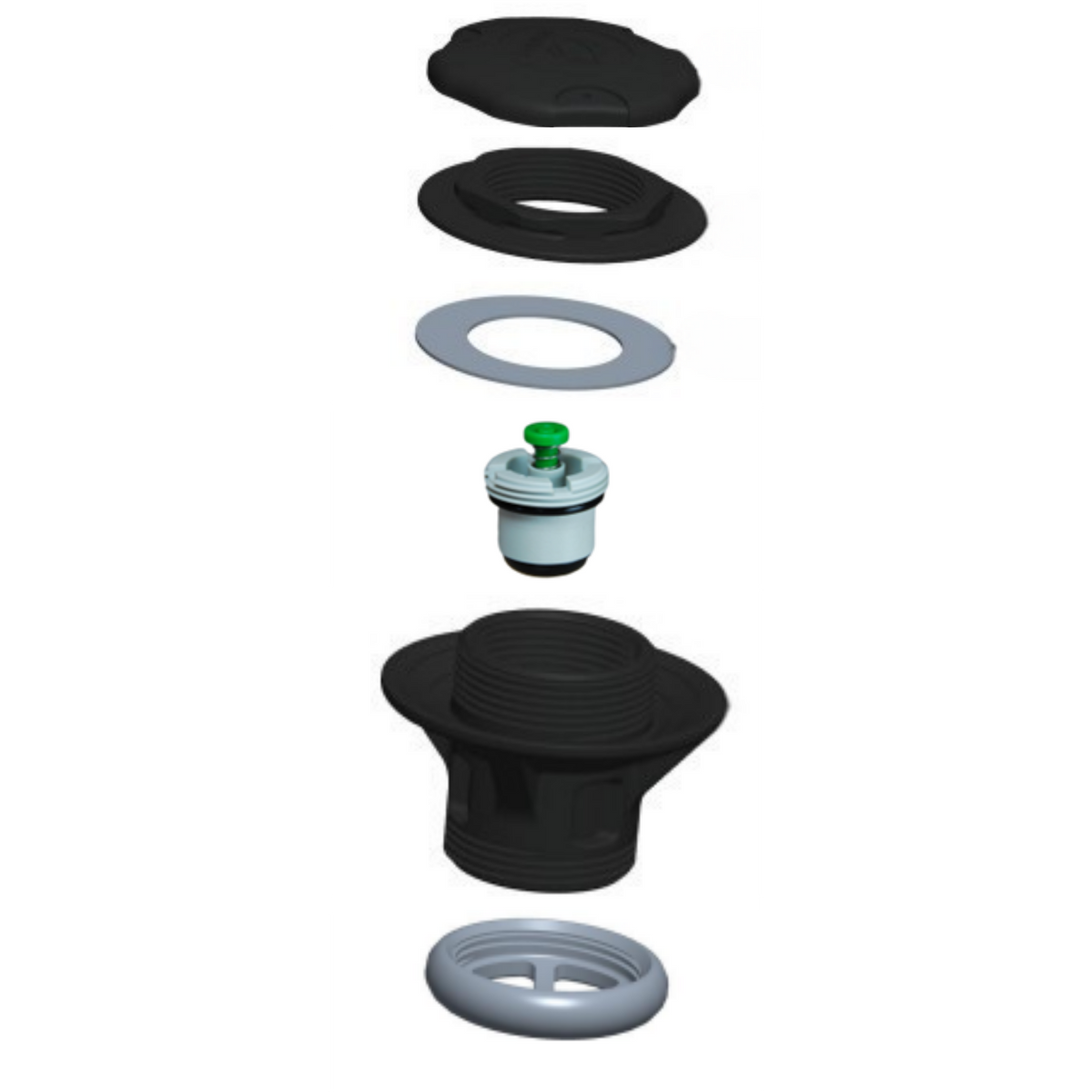

New valve system - semi-recessed - black

This type of valve is used on current Zodiac and Bombard boats.

Ventieloverzicht van de nieuwe Zodiac ventielen - half verzonken - zwart
x Z67300 Afsluitdop zwart - nieuwe typeZ67300 Afsluitdop Zodiac zwart - nieuwe type ventiel

Z67300 - sealing cap - semi-recessed black valve - new valve type

x

Example product title

x Z6852 pakking zodiac ventiel - zwartOverzicht ventiel opbouw - oudere Zodiac ventielen

Z6852 - valve gasket - black

x

Example product title

x afsluitstuk-rubberboot-ventiel-zodiac-z67090-1afsluitstuk rubberboot ventiel zodiac-z67090

Z67090 - valve housing end cap

x Z67080 Zodiac Inzetventiel nieuwe type ventiel Z67080 Zodiac Inzetventiel nieuwe type ventiel

Z67080 - valve insert - new type valve

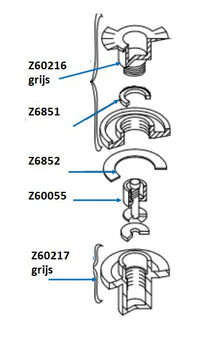

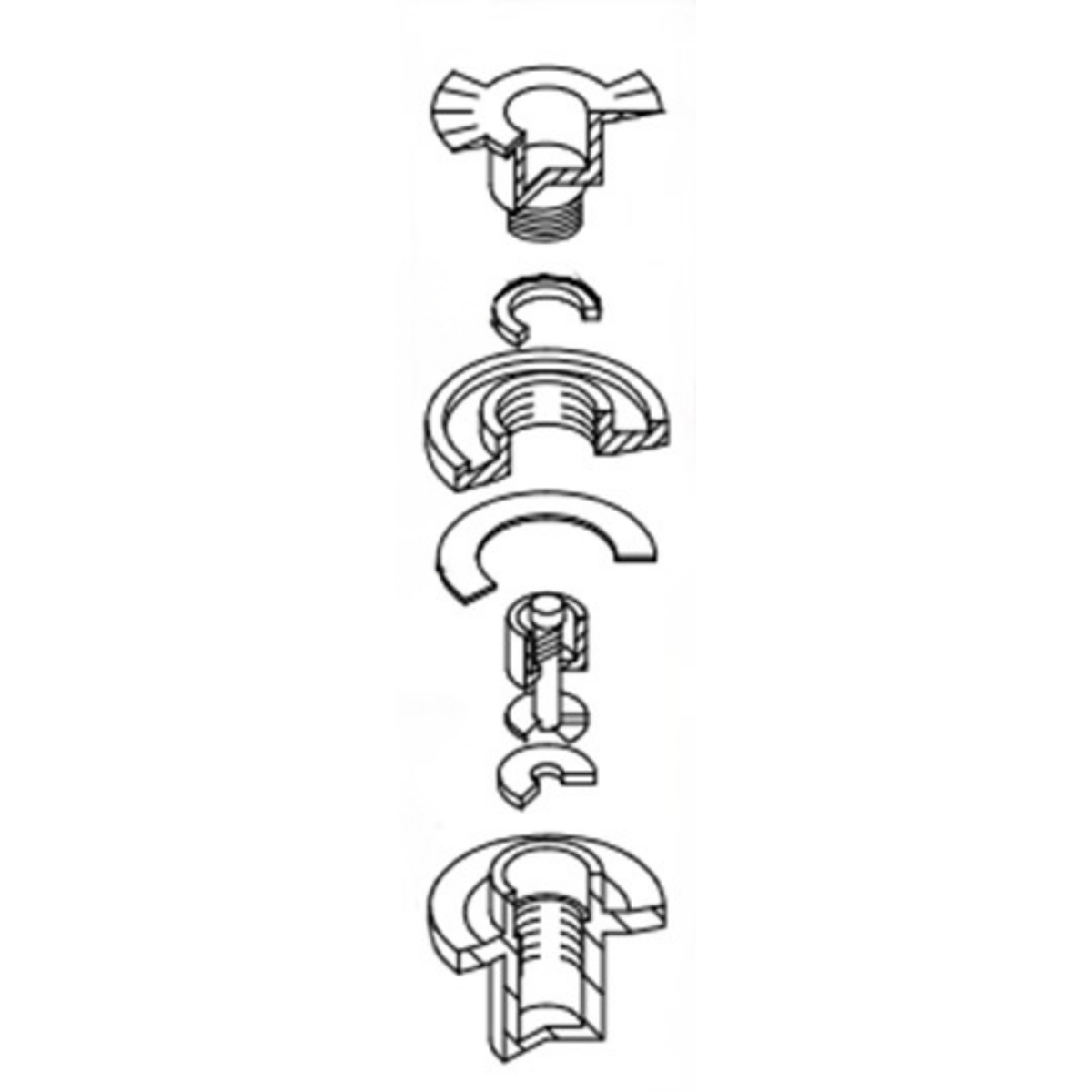

Old valve system - semi-recessed

This type of valve was used on older Zodiac and Bombard models

Ventieloverzicht van de oude Zodiac ventielen - half verzonken
x Z60052 afsluitdop ventiel zodiac rubberbootZ60052 afsluitdop ventiel zodiac rubberboot

Z60052 - Sealing cap - half-recessed valve black

x pakking-zodiac-ventieldop-ring-z6851pakking-zodiac-ventieldop-ring-z6851-1

Z6851 - valve cap gasket - black

x Z60052 afsluitdop ventiel zodiac rubberbootZ60052 afsluitdop ventiel zodiac rubberboot

Z60052 - Sealing cap - half-recessed valve black

x Z6852 pakking zodiac ventiel - zwartOverzicht ventiel opbouw - oudere Zodiac ventielen

Z6852 - valve gasket - black

x Z60217 Zodiac Ventielbehuizing ouder type ventiel grijsVentiel overzicht Zodiac halfverzonken ventiel - ouder type ventiel

Z60217 - valve housing - older type valve

x Z60055 inzetventiel zodiacZ60055 inzetventiel zodiac

Z60055 - Valve insert - old-type valve

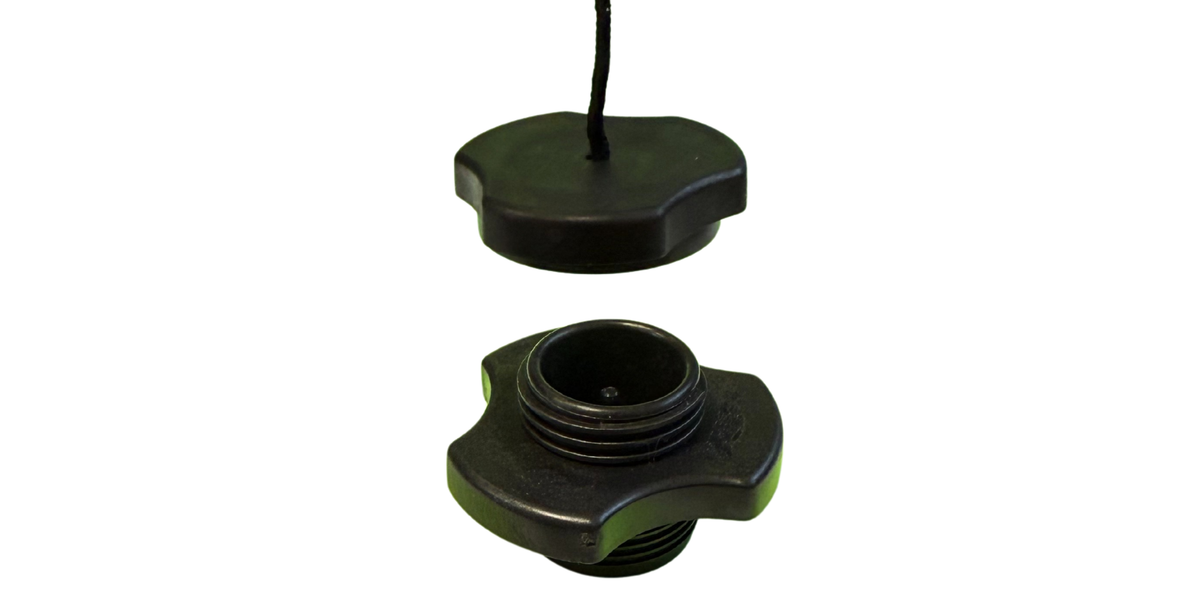

Surface-mount valve

This is the surface-mounted valve (Delrin) – used on various models

Overzicht van het opbouwventiel Zodiac boten
x Z61928 Zodiac opzetventiel zwart met afsluitdopZ61928 Zodiac opzetventiel zwart met afsluitdop

Z61928 - Top-up valve and sealing cap black

x Z61928 Zodiac opzetventiel zwart met afsluitdopZ61928 Zodiac opzetventiel zwart met afsluitdop

Z61928 - Top-up valve and sealing cap black
