Z67301 - valve housing - new type valve

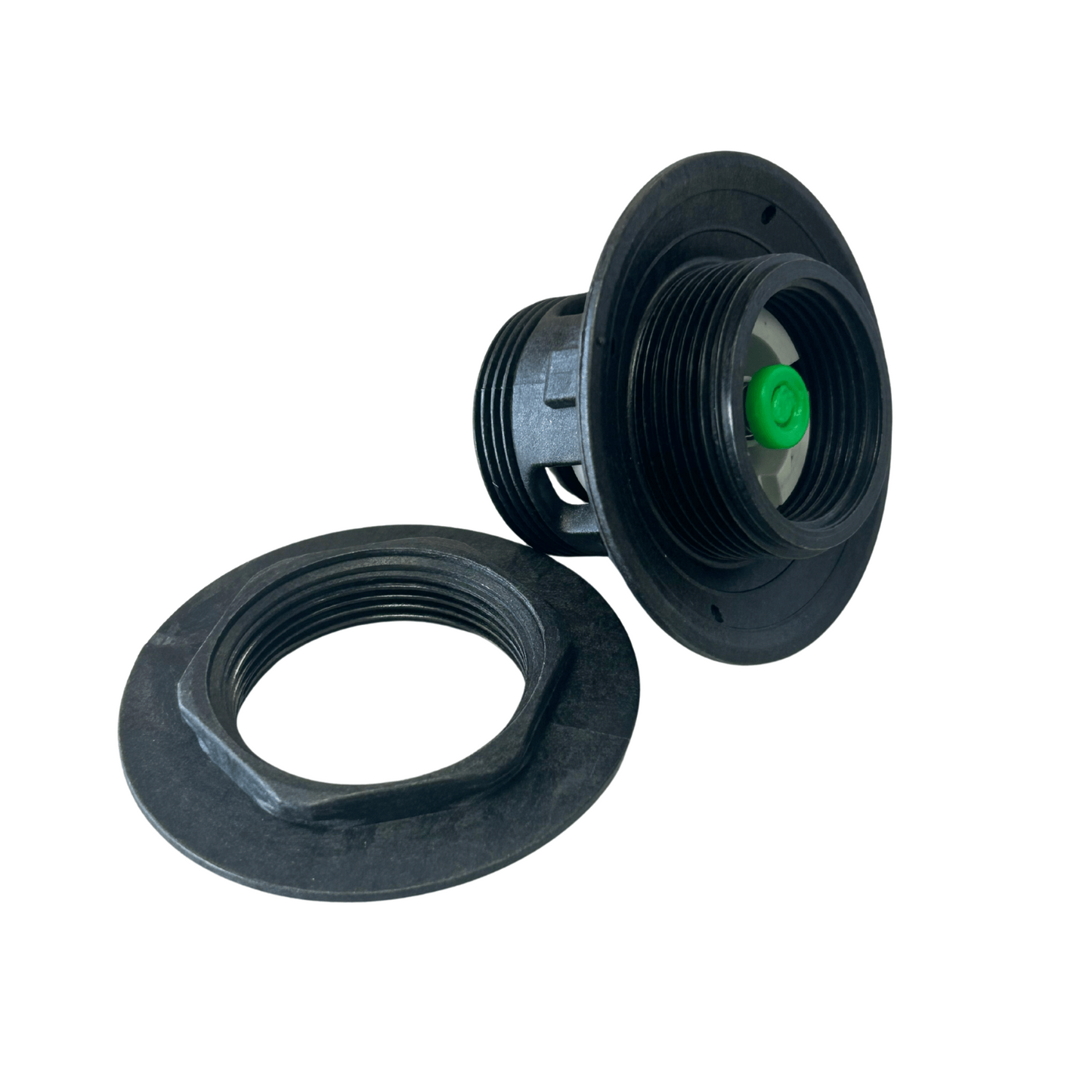

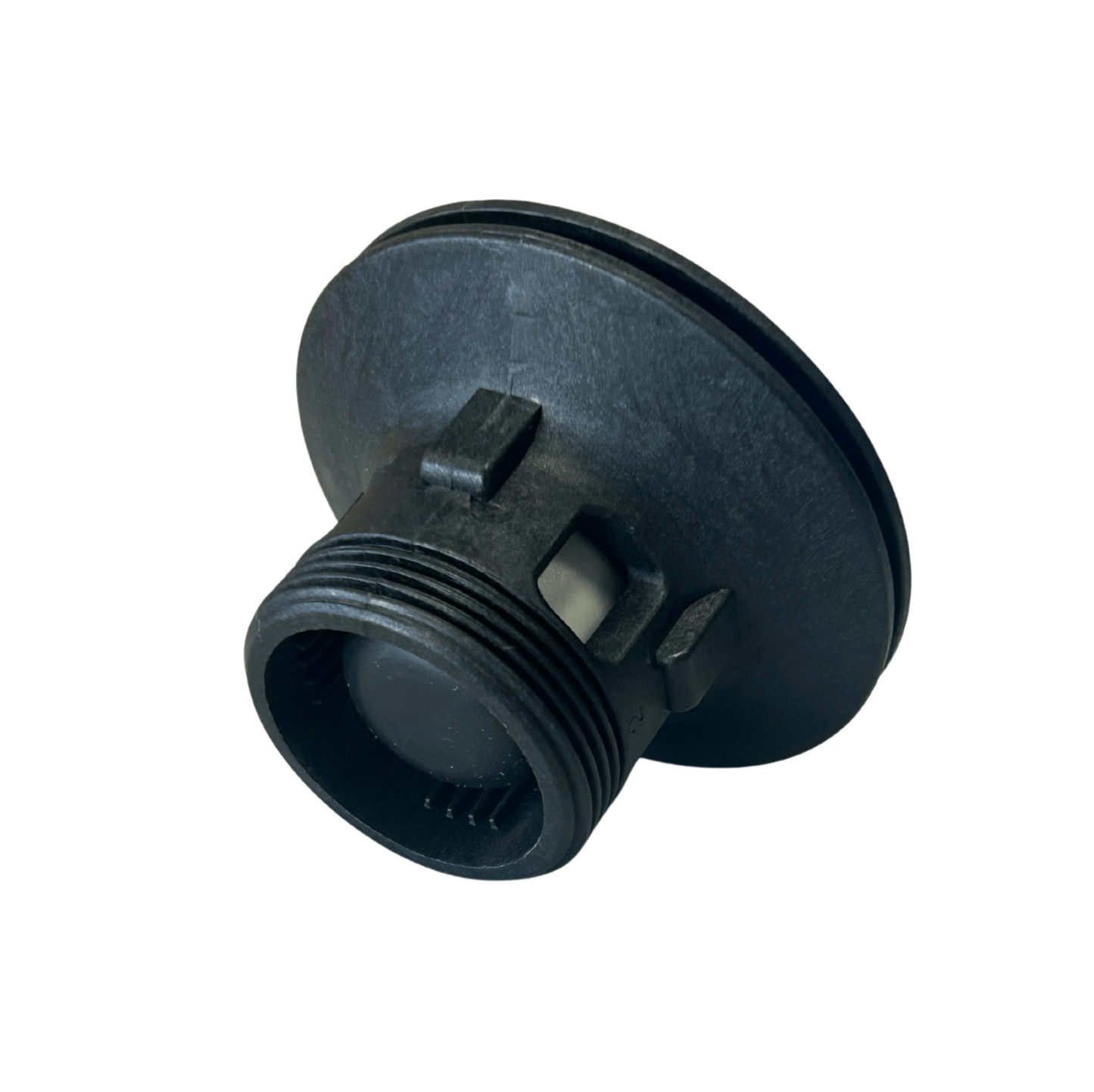

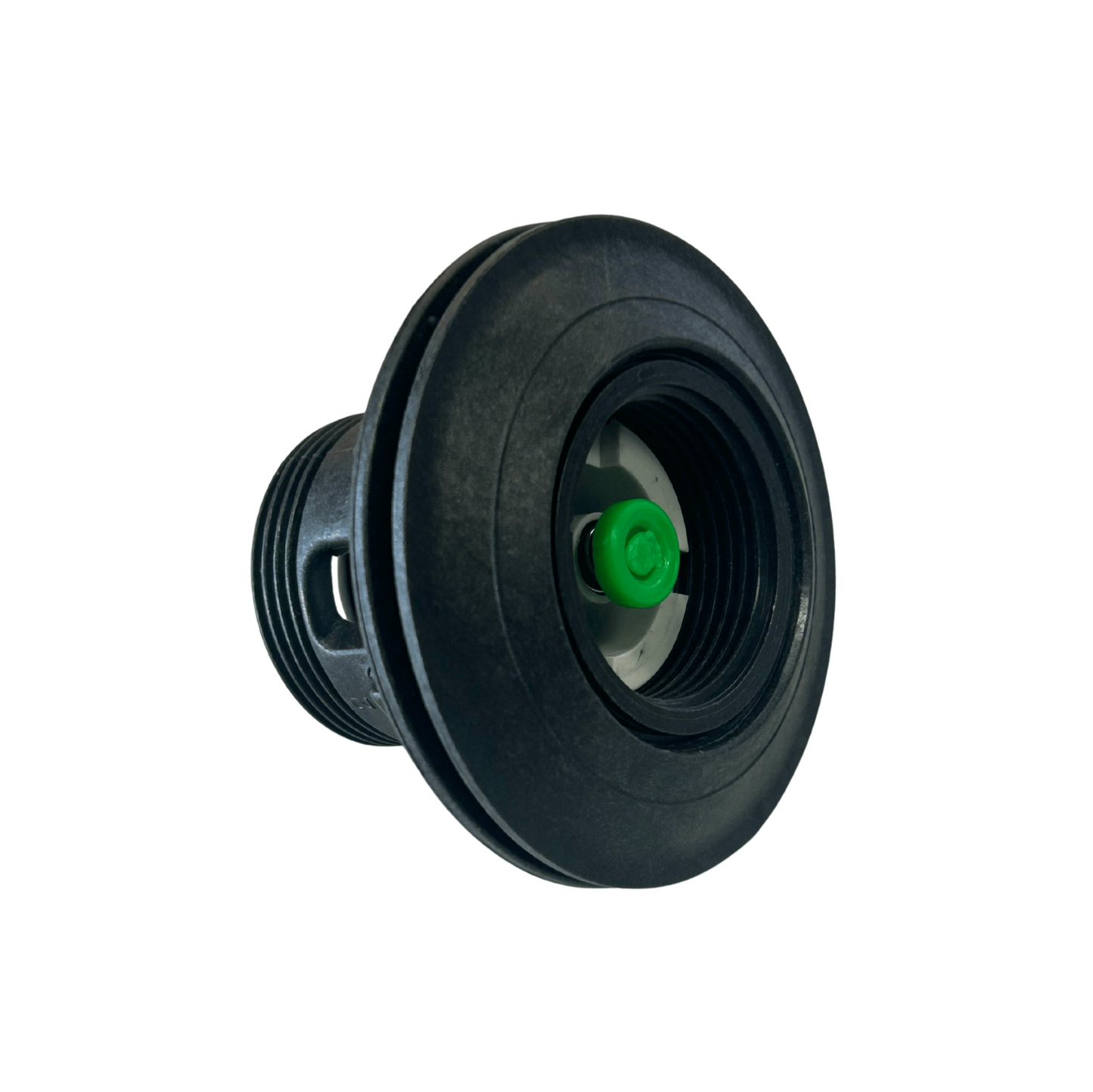

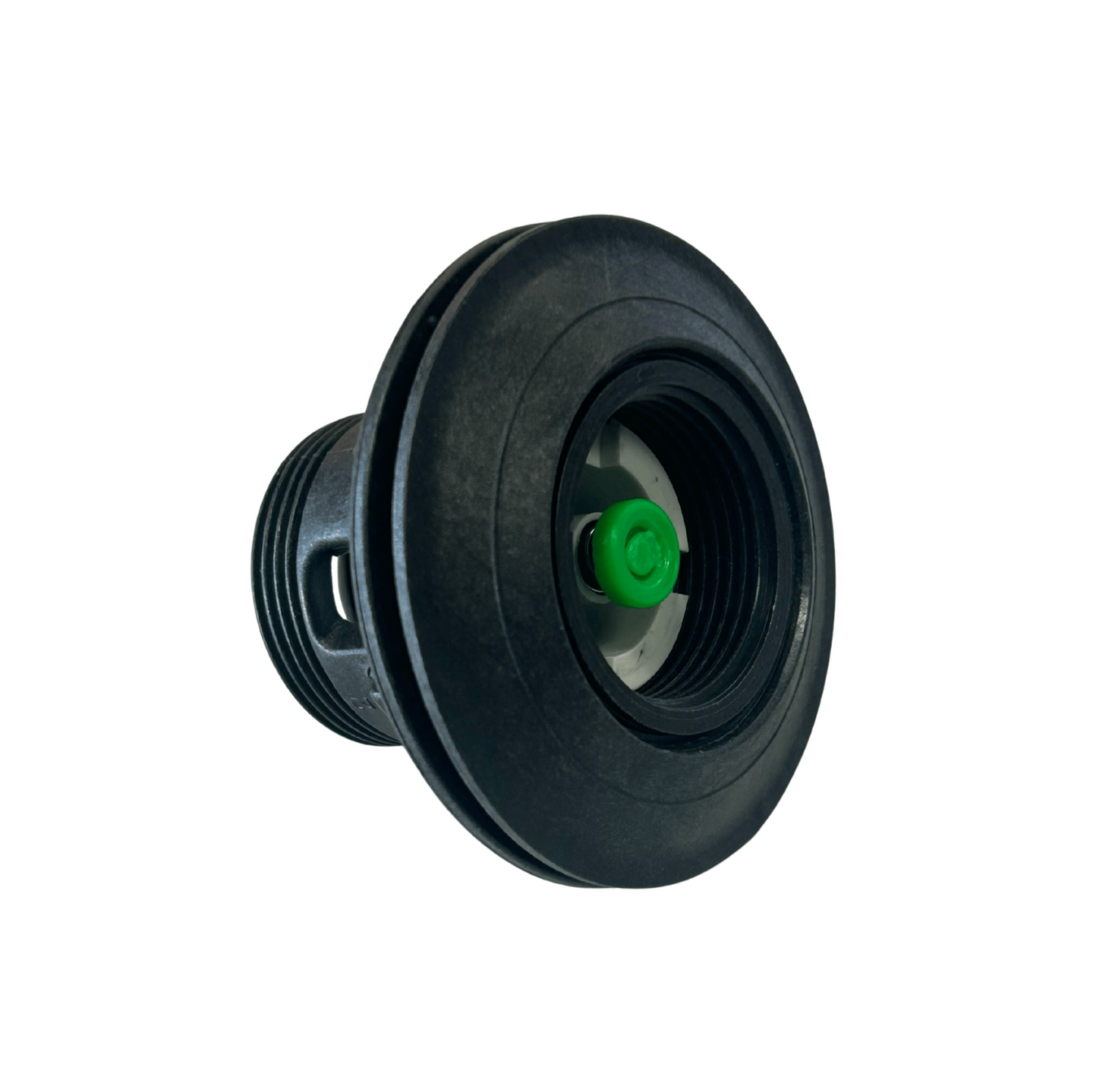

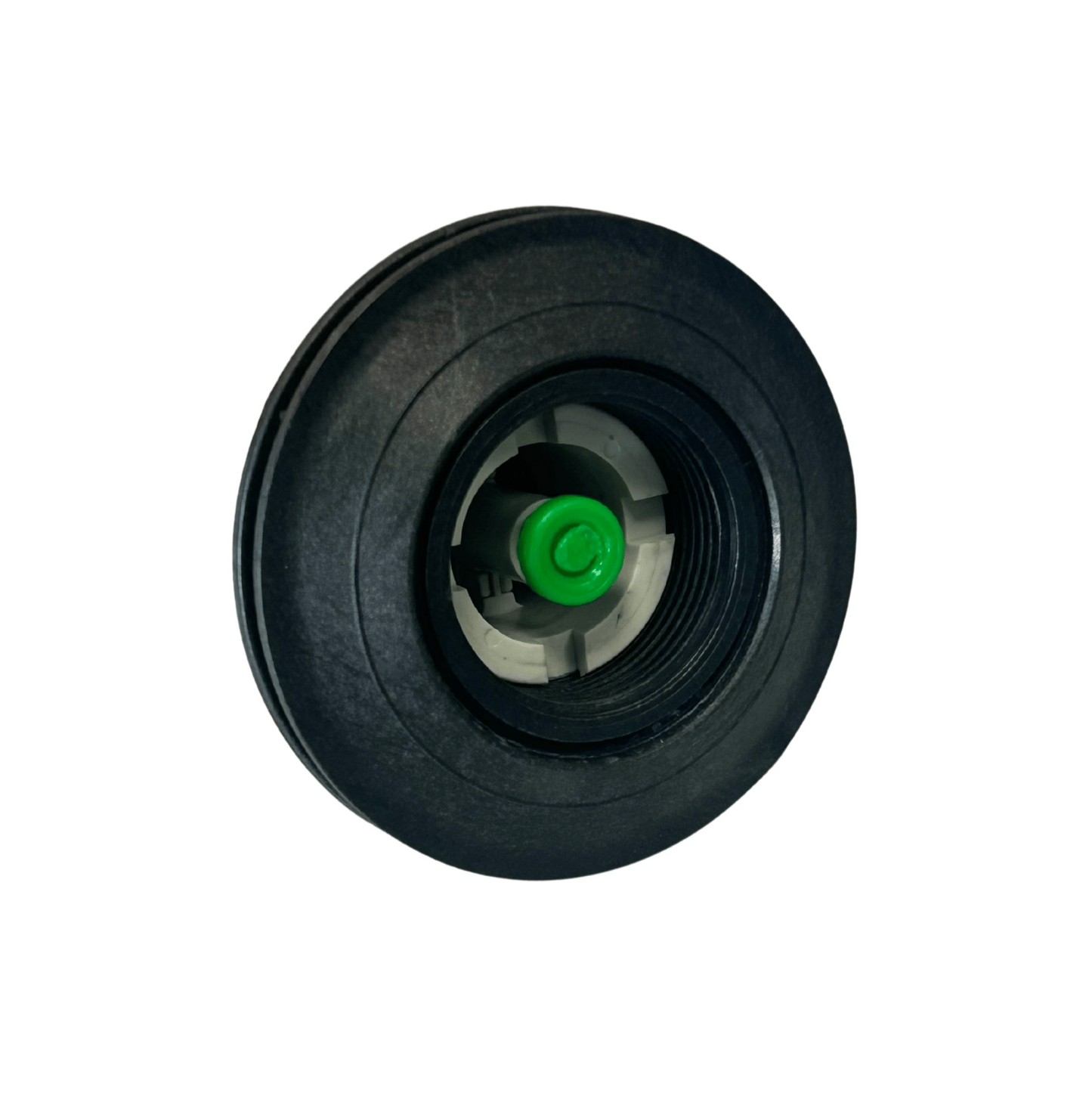

Valve housing Z67301 semi-recessed valve Zodiac Bombard

Valve housing Z67301 semi-recessed valve is part of the new type of semi-recessed valves used on Zodiac and Bombard inflatable boats and RIBs. This valve housing ensures a reliable, airtight seal of the valve and is designed for long-term use under demanding conditions.

The housing is supplied as standard with the valve insert Z67080. This insert is also available separately. The valve housing consists of two parts that are placed on either side of the tube fabric.

The lower part of the housing is fitted on the inside of the tube. Then place the gasket Z6852 on the inside against the fabric, followed by the boat material itself and finally the retaining ring of the valve housing on the outside.

The diaphragm Z6852 is not supplied as standard, but is available separately via the related products. The matching caps for this valve type are Z67300 (black) and Z67395 (grey).

Unsure which valve type your Zodiac or Bombard inflatable boat has? Contact us; we will be pleased to help.
